R3600 |
| Wide Band Isolation Transformer |
|
|
- For RF, DS3/E3, Broadband, BPL and Ethernet Magnetics which require Supplementary or Reinforced Isolation
Construction Complies with IEC60950 Isolation Requirement
- RoHS Compliant Product
- Operating Temp: 0°C to 70°C (extended temperature subject to request)
| |
| |
| Electrical Specification @ 25°C |
|
Part No.
R3600- |
Turns
Ratio
Pri: Sec ±5% |
Pri OCL
(µH) Min
1-4 |
Pri DCR
(Ohm) Max
1-4 |
Insertion Loss
dB Max
1MHz |
Insertion Loss
dB Max
100MHz |
Insertion Loss
dB Typ
300MHz |
Hipot
VRMS
Pri to Sec |
Schematic
|
|
1 |
1:1 |
500 |
.30 |
-0.5 |
-1.0 |
-2.6 |
4500 |
B |
|
2 |
1CT:1CT |
800 |
.50 |
-0.5 |
-1.2 |
-3.5 |
3000 |
A |
|
3 |
1:2 |
120 |
.20 |
-0.8 |
-1.0 |
-1.5 |
4500 |
B |
|
4 |
1:1:1 |
120 |
.20 |
-0.8 |
-1.0 |
-1.5 |
4500 |
C |
|
5 |
3:3:1 |
200 |
.30 |
-0.5 |
-1.0 |
-3.0 |
3000 |
C |
|
6 |
1:1.224 |
500 |
.50 |
-0.8 |
-1.0 |
-3.0 |
3000 |
B | Note: |
- OCL measured @ 100KHz, 0.1VRMS at Pin 1-4 (with 2-3 shorted)
- Insertion Loss measured with 100 Ohm as Input (Primary) Impedance between 1-4 and Output (Secondary) load with respective impedance
- 50 Ohm and 75 Ohm impedance data available upon request
|
|

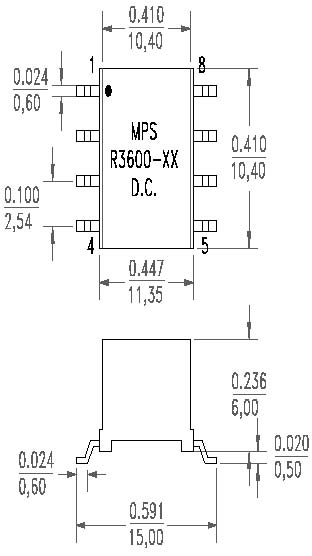

Mechanical
|

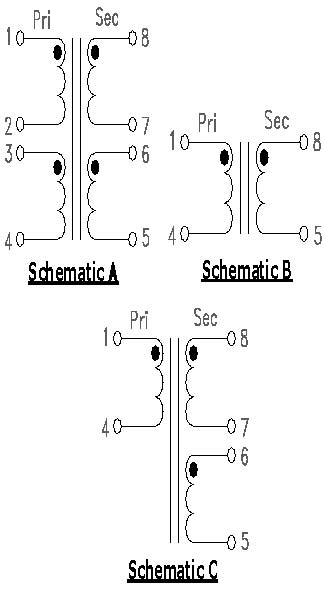

Schematic
|
|
|
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice. |
|
|
|
