Video & RF Transformers

R3557, R3596

Video Isolation Transformer

Video hum elimination and ground isolation for CCTV applications

Operating Temperature: 0°C to + 70°C

Hipot: 250V_DC, 1KM Ohm, (Pri to Sec)

RoHS Compliant Product

Custom design available upon request

Electrical Specification @ 25°C

Part No.

Impedance

Ratio

1-3:6-4 ± 5%

Bandwidth

MHz

Insertion Loss

@100KHz

dB Max

Inductance

(mH) Min

(1-3)

DCR

(Ohm) Max

(1-3)

R3557

75 Ohm : 75 Ohm

20Hz-8MHz

0.50

900

6.0

R3596

75 Ohm : 100 Ohm

25Hz-8MHz

0.50

650

6.0

Polarity: 1 and 6 are in phase

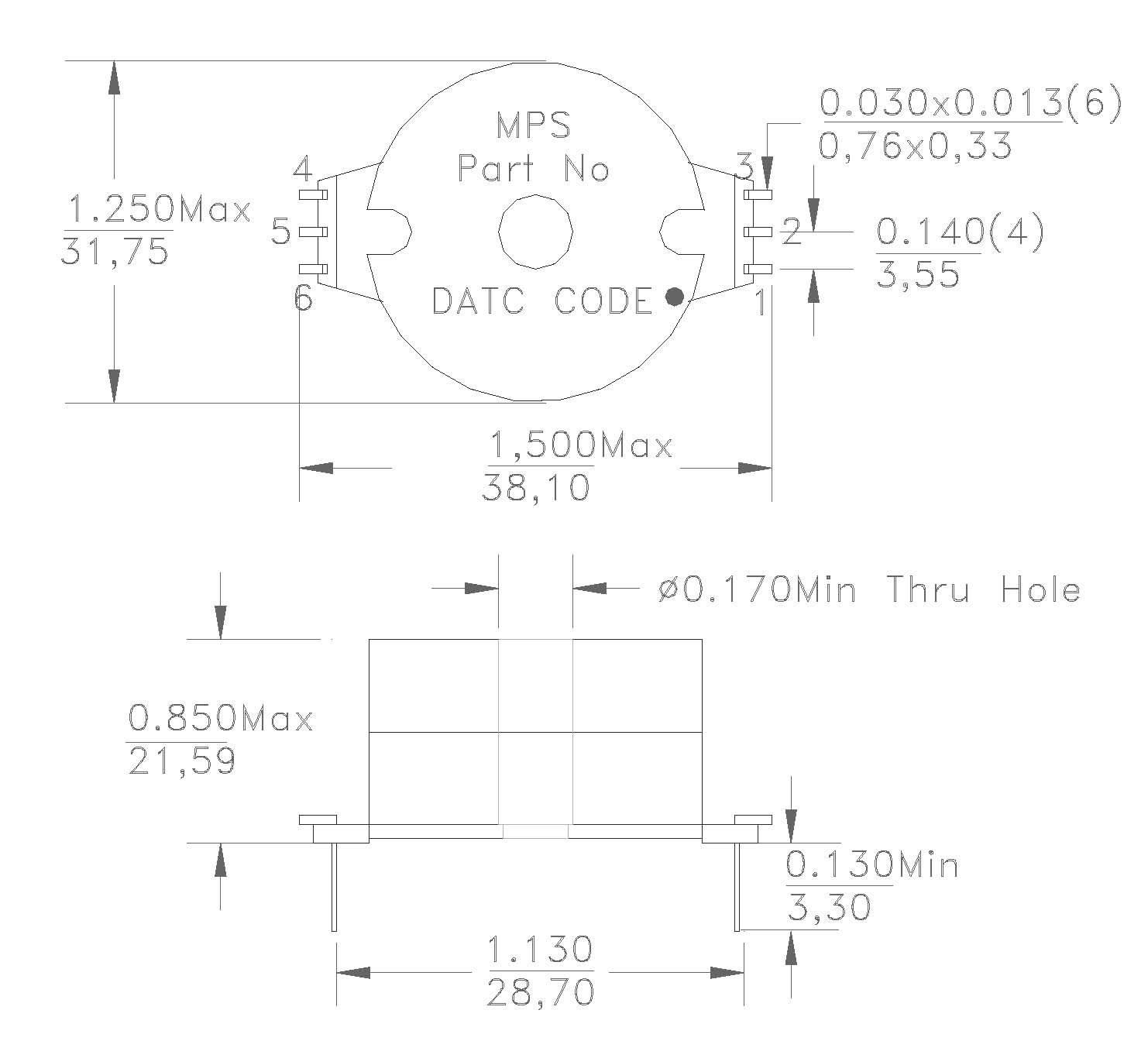

Mechanical

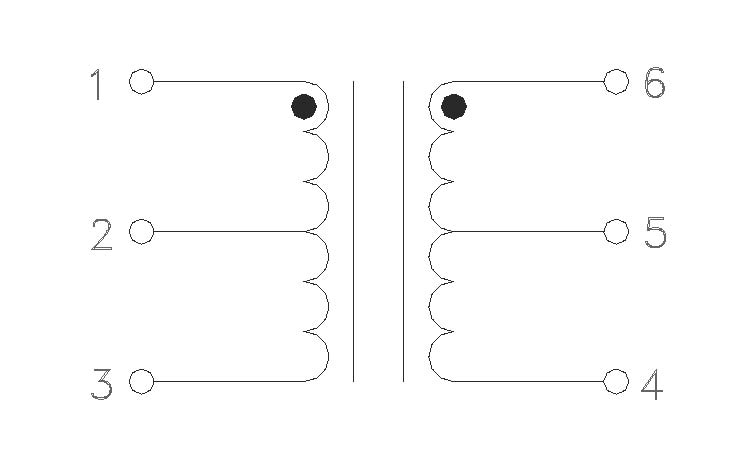

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
