Video & RF Transformers

R3536

Mini Video Isolation Transformer

For CCTV ground isolation and hum stopping

RoHS Compliant Product

Operating Temperature: 0°C + 70°C

CMR: -80dB Typical 50/60Hz

Hipot: 250V_DC, 1KM Ohm, (Pri to Sec)

Polarity: 1 and 6 are in phase

Custom design available upon request

Electrical Specification @ 25°C

Part No.	OCL 1KHz mH Min (1-3)	Leakage L µH Max (1-3)	DCR Ohm Max (1-3)	Insertion Loss dB Max	Freq Resp Typ (-3dB) (6-4)	Impedance Ratio ±3% 1-3:6-4	Dimension
R3536-1	140	6.0	12	-1.5	200Hz-8MHz	75 Ohm : 100 Ohm	A
R3536-2	165	5.0	12	-1.5	180Hz-10MHz	75 Ohm : 75 Ohm	A
R3536-3	450	4.5	8	-1.2	50Hz-10MHz	75 Ohm : 75 Ohm	B
R3536-4	350	6.0	8	-1.2	60Hz-10MHz	75 Ohm : 100 Ohm	B

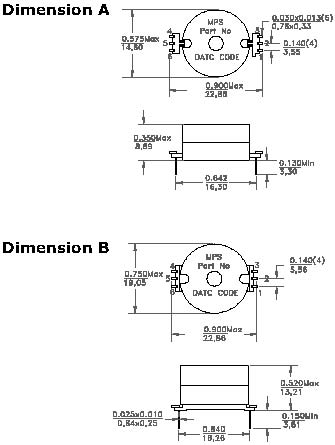

Mechanical

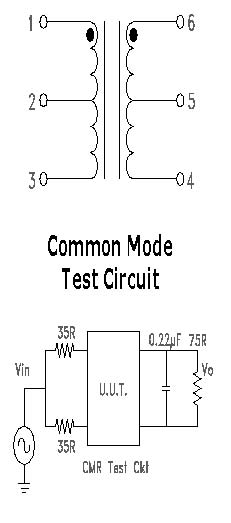

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.020 .XXX : ±0.004
mm: X,X : ± 0,51 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
