Video & RF Transformers

R12704

Pulse Transformer

RoHS Compliant Product

L_L, C_WW are measured @ 100KHz, 20mV

Operating Temp: 0°C to 70°C

Electrical Specification @ 25°C

Part No. R12704-	Primary Inductance µH Min	Testing Freq KHz 0.1V_RMS	Primary Pins	Leakage Inductance µH Max	Interwinding Capacitance pF Max	Turns Ratio Pri: Sec ±5%	DCR Ohm Max PRI	DCR Ohm Max SEC	Hipot V_RMS Min	Schematic
1	40	100	1-5	0.1	5	1:1	0.2	0.2	3000	A
2	1200	10	1-5	0.8	25	1CT:1	0.7	0.7	1500	B
3	1200	10	1-5	0.55	25	1CT:2CT	0.7	1.2	1500	C
4	1200	10	1-5	0.8	35	1:1.4CT	0.7	0.8	1500	D
5	1200	10	1-5	0.8	35	1:1.36CT	0.7	0.9	1500	D
6	1200	10	1-5	0.5	35	1:2.3CT	0.7	1.7	1500	D
7	1200	10	2-6	0.5	35	1:2CT	0.7	1.2	1500	B
8	5000	10	1-2	1.3	70	1:1:1	3.9	3.9	500	E
9	2060	10	1-5	0.6	35	1:1	1.5	1.5	500	A
10	2500	10	1-5	1.3	70	1:1	3.9	3.9	2000	A
11	19	100	1-5	0.6	0.06	1:2CT	0.15	0.3	3000	D

Mechanical

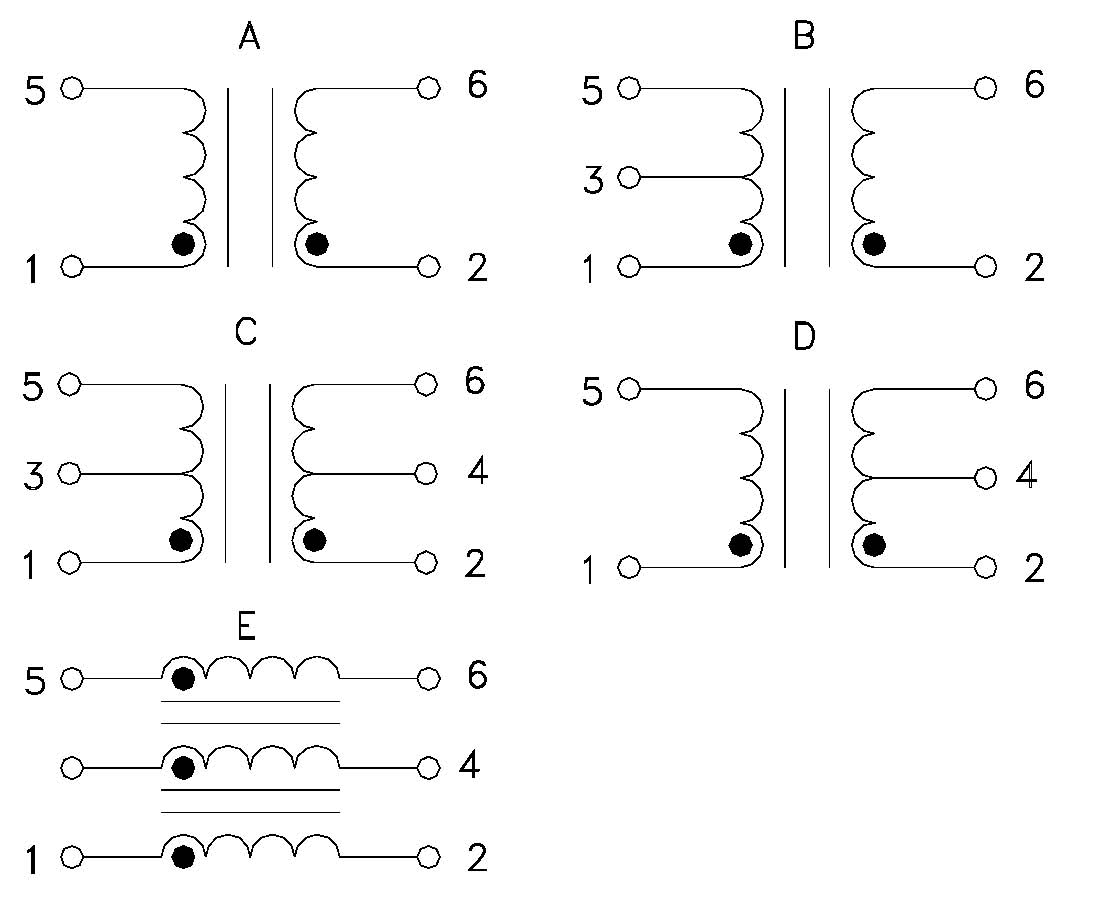

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
