Video & RF Transformers

R12703

Pulse Transformer

RoHS Compliant Product
Hipot: 500V_RMS Primary to Secondary
Turns Ratio: 1 : 1± 2%
Rise Time: 3.5 nS Max
OCL, L_L, C_WW are measured @ 100KHz, 100mV
Operating Temperature: -40°C to + 85°C

Electrical Specification @ 25°C

Part No. R12703-	OCL µH ± 20%	L_L µH Max	C_WW pF Max	DCR Ohm Max	ET V-µS Min
200	20	0.20	6	0.20	1.50
350	35	0.20	8	0.25	1.50
500	50	0.35	9	0.30	2.10
750	75	0.35	10	0.30	2.10
101	100	0.40	10	0.30	2.50
151	150	0.40	12	0.30	2.50
201	200	0.45	15	0.30	3.00
501	500	0.50	25	0.30	3.50

Mechanical

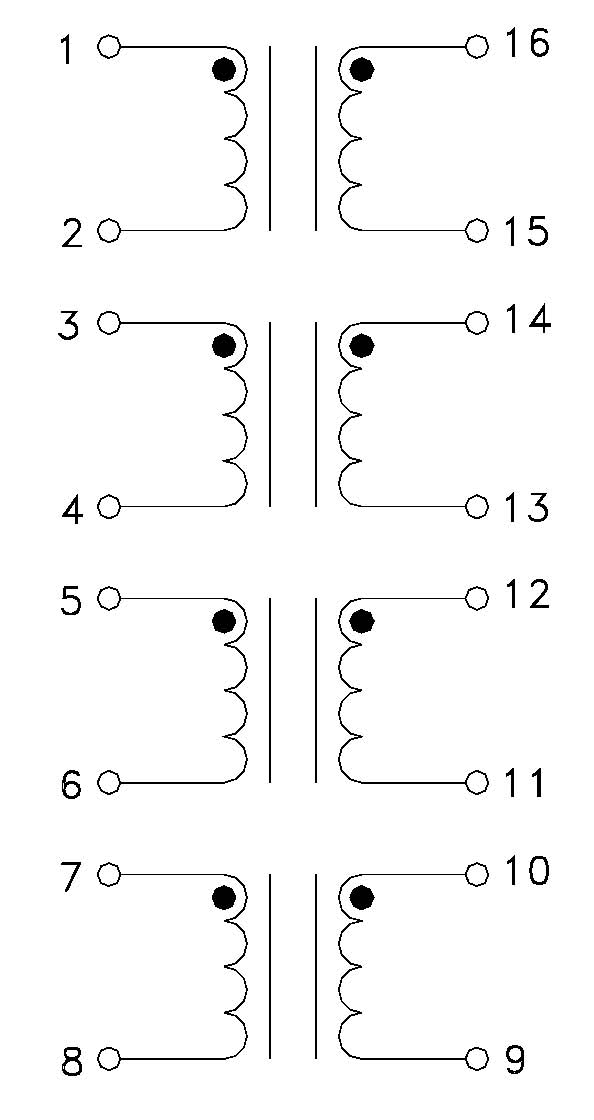

Schematic

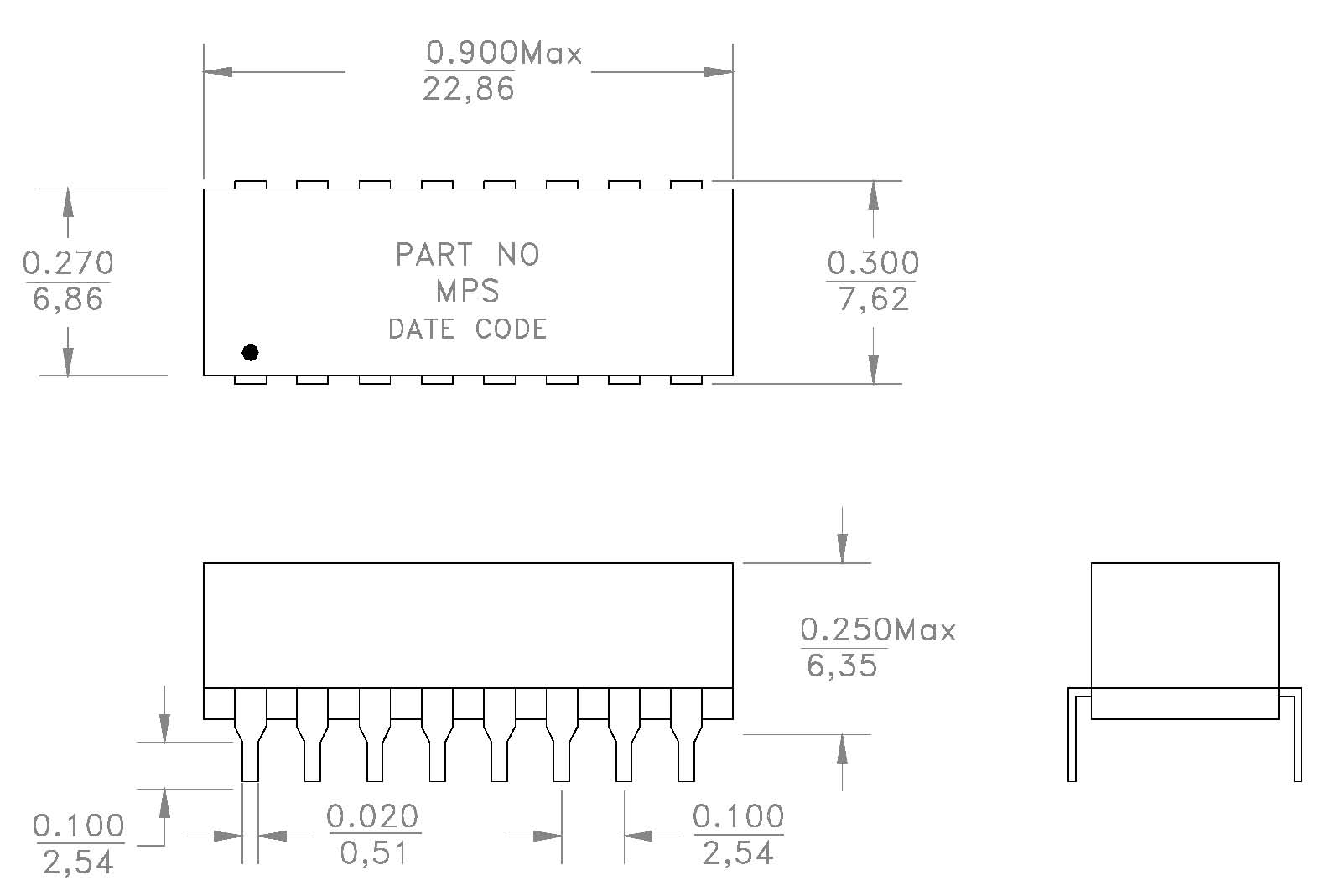

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.

R12703.pdf
