Video & RF Transformers

R12702

Pulse Transformer

RoHS Compliant Product

Hipot: 2,000V_RMS Primary to Secondary

Turns Ratio: 1 : 1± 2%

Rise Time: 3.0 nS Max

Primary ET: 2.7V-µSec Min

OCL, L_L, C_WW are measured @ 100KHz, 20mV

Operating Temperature: -40°C to + 85°C

Electrical Specification @ 25°C

Part No. R12702-	OCL µH ± 20%	L_L µH Max	C_WW pF Max	DCR Ohm Max
750	75	0.20	10	0.20
101	100	0.25	10	0.25
151	150	0.30	10	0.30

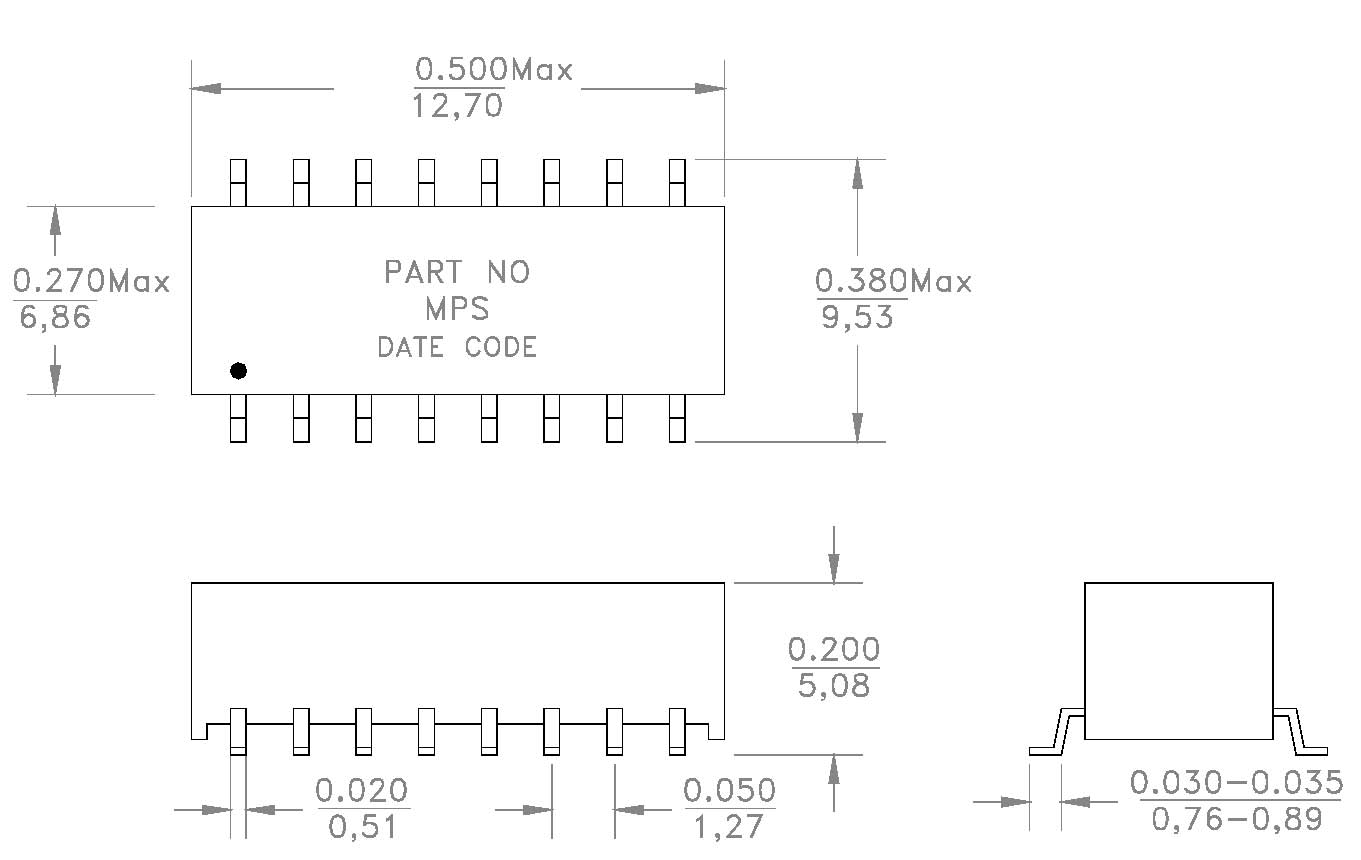

Mechanical

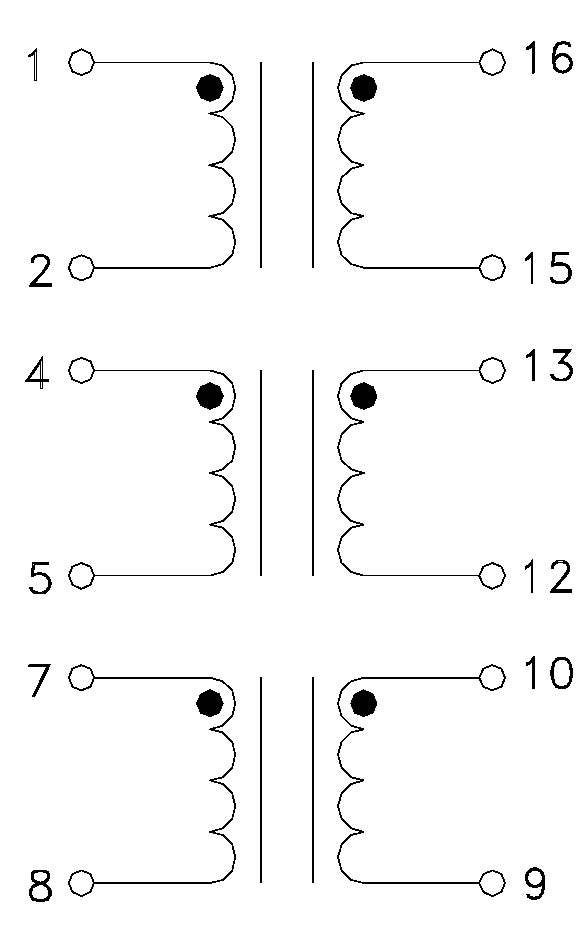

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
