Medical Grade Magnetic Components

R3569, R3575

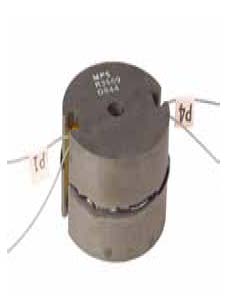

Medical Grade Video Isolation Transformer

CCTV video hum elimination and ground isolation

Complies with IEC60950 and UL60601 reinforced isolation

2.0Vp-p input, 75 Ohm source and matching load

Hipot: 4KV subscript, 2mA Max, 60 seconds (Pri to Sec)

Operating Temperature: 0°C to + 70°C

RoHS Compliant Product

Electrical Specification @ 25°C

Part No

OCL 1KHz

mH Min

(1-2)

Leakage L

µH Max

(1-2)

DCR

Ohm Max

(1-2)

Insertion

Loss

dB Typ

Freq Resp

Typ (-3dB)

(4-3)

Independence

Ratio ±5%

1-2:4-3

R3569

700

7.5

6.0

-1.5

20Hz-6MHz

75 Ohm : 75 Ohm

R3575

600

10.0

6.0

-1.5

25Hz-6MHz

75 Ohm : 100 Ohm

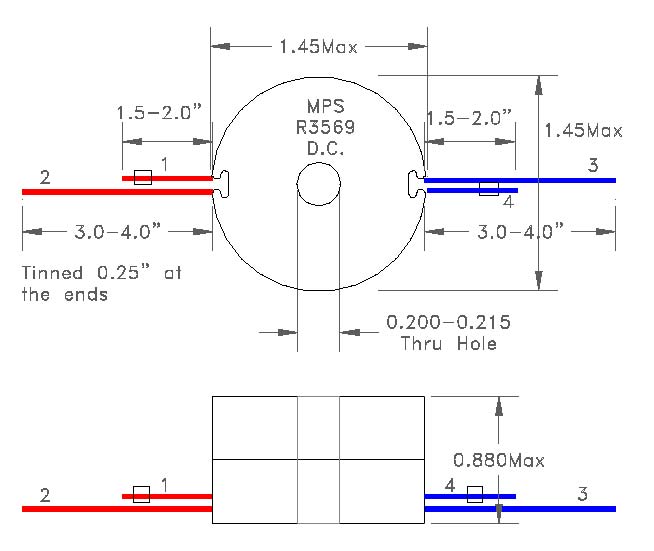

Mechanical

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
