Medical Grade Magnetic Components

MX5022

Medical Grade Common Mode Choke

Good for use in Medical Switch Mode Power Supply applications

Complies with IEC60950 and UL60601 reinforced isolation

Hipot: 4000V_RMS(1-2 to 4-3)

Operating Temperature: 0°C to +100°C

RoHS Compliant Product

Custom design available upon request

Electrical Specification @ 25°C

Part No MX5022-	OCL 1KHz mH Min (1-2)	DCR Ohm Max (1-2)	I_RMS A Max
102	1.0	0.025	6.0
202	2.0	0.050	4.0
302	3.0	0.200	2.0
502	5.0	0.600	1.0

Note:

Turns Ratio: 1:1 ±5% (1-2 to 4-3)
Polarity: 1 and 4 are in phase
I_RMS: Temperature change of 35°C rise max at rated I_RMS

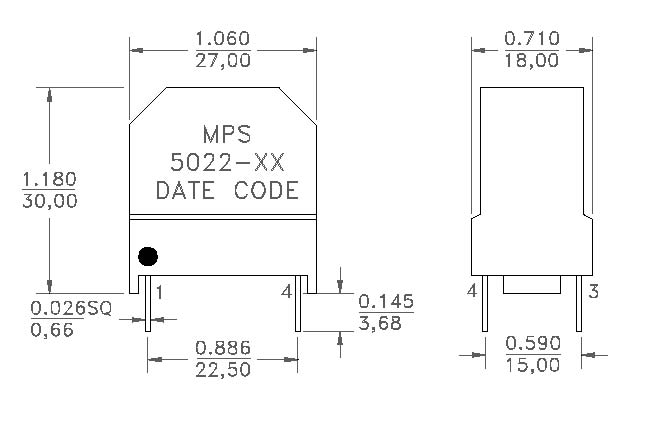

Mechanical

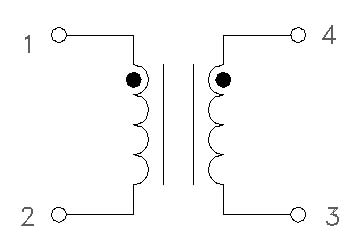

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015 .XXX : ±0.004
mm: X,X : ±0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
