Medical Grade Magnetic Components

MX5013

Medical Grade Common Mode Choke

Good for use in Medical Switch Mode Power Supply applications

Complies with IEC60950 and UL60601 reinforced isolation

Designed for LF attenuation

Operating Temperature: 0°C to +100°C

RoHS Compliant Product

Custom design available upon request

Electrical Specification @ 25°C

Part No MX5013-	OCL 1KHz mH Min (1-2)	DCR Ohm Max (1-2)	I_RMS A Max
102	1.0	0.030	3.5
202	2.0	0.150	1.5
302	3.0	0.500	1.0
502	5.0	1.000	0.5

Note:

Turns Ratio: 1:1 ±5% (1-2 to 4-3)
Hipot: 4000V_RMS (1-2 to 4-3)
Polarity: 1 and 4 are in phase
I_RMS: Temperature change of 40°C rise max at rated I_RMS

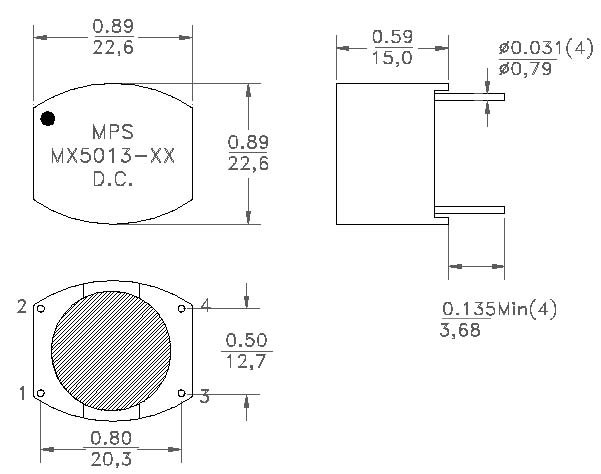

Mechanical

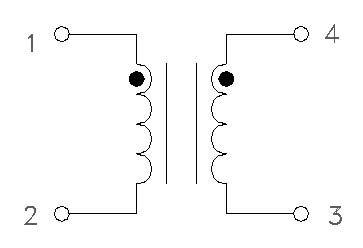

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015 .XXX : ±0.004
mm: X,X : ±0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
