Medical Grade Magnetic Components

MX5011

Medical Grade Common Mode Choke

Good for use in Medical Switch Mode Power Supply applications

Complies with IEC60950 and UL60601 reinforced isolation

Designed for HF/RF attenuation

Operating Temperature: -40°C to +100°C

RoHS Compliant Product

Custom design available upon request

Electrical Specification @ 25°C

Part No MX5011-	OCL 10KHz µH Min (1-2)	DCR Ω Max (1-2)	SRF MHz Min	I_RMS A Max
3R0	3.0	0.120	80	1.0
24	24	0.050	50	2.0
36	36	0.050	40	2.0
50	48	0.120	30	1.5
101	100	0.50	10	.5

Note:

Turns Ratio: 1:1 ±5% (1-2 to 4-3)
Hipot: 4000V_RMS (1-2 to 4-3)
Polarity: 1 and 4 are in phase
I_RMS: Temperature change of 35°C rise max at rated I_RMS

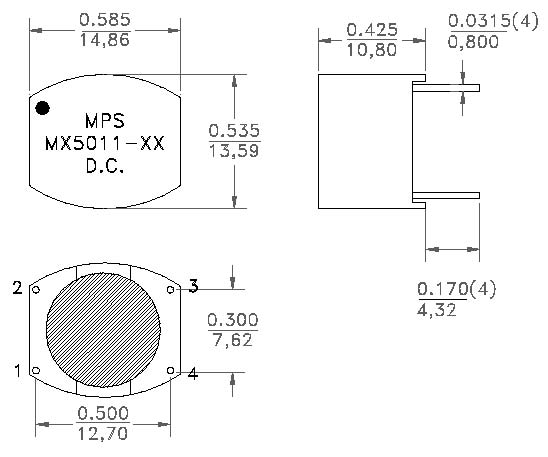

Mechanical

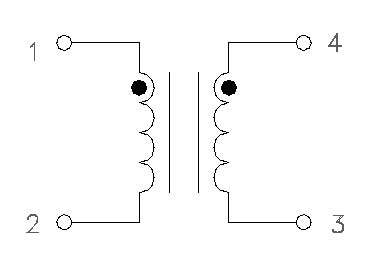

Schematic

Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.

MX5011.pdf
