Medical Grade Magnetic Components |
|
M6201 |
| Transformer for RS-485 / RS-232 Interface |
|
|
- Designed for use with the MaximTM MAX253 and MAX845 monolithic oscillator/ power driver 3.3V/ 5.0V source
- Construction complies with IEC 60950 Basic, Supplementary and Reinforced isolation requirements
- UL60601 and VDE requirement design subject to request
- Operating Temperature: -40°C to +85°C
- Smaller package with 500VRMS isolation low cost version available upon request
| |
| |
| Electrical Specification @ 25°C |
|
Part No
M6201- |
L(1-4)
(µH)
Min |
Turns Ratio
(1-4 : 8-5)
± 5% |
ET (1-4)
VµSec
Min |
DCR
(1-4)
(Ω) Max |
LL (1-4)
(µH)
Max |
CWW
(1-4 to 8-5)
(pF) Max |
Hipot
(1-4 to 8-5)
VRMS |
|
21 |
500 |
2CT : 1CT |
18 |
1.5 |
1.50 |
45 |
4500 |
|
83 |
500 |
2.67CT : 1CT |
18 |
1.5 |
2.00 |
45 |
4500 |
|
43 |
500 |
1.33CT : 1CT |
11 |
1.00 |
1.20 |
45 |
4500 |
|
34 |
500 |
1CT : 1.33CT |
11 |
1.00 |
1.20 |
45 |
4500 |
|
11 |
500 |
1CT : 1CT |
11 |
1.00 |
1.00 |
45 |
4500 |
|
13 |
500 |
1CT : 2CT |
11 |
1.00 |
1.20 |
45 |
4500 |
|
38 |
500 |
1CT : 2.67CT |
11 |
1.00 |
2.00 |
45 |
4500 |
Note:
|
- Primary: Connect 1-2 and 3-4 in series
- Secondary: Connect 8-7 and 6-5 in series
- OCL, LL, Cww measured at 100KHz, 0.1VRMS
|
|

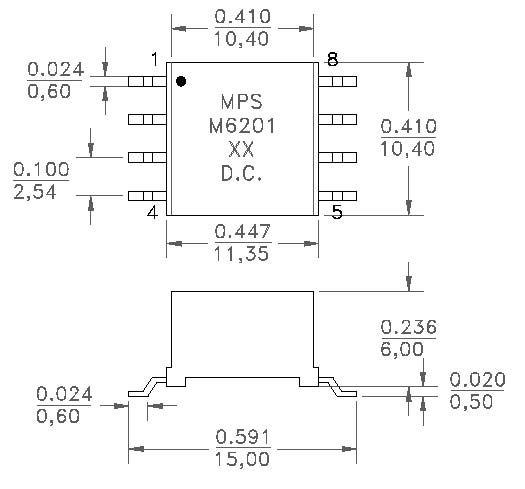

Mechanical
|

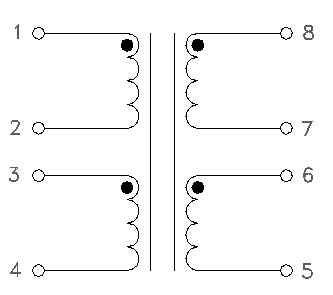

Schematic
| |
|
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice. |
|
|
|
